6116522-1
Manufacturer:
TE Connectivity
Mfr.Part #:
6116522-1
Datasheet:
Description:

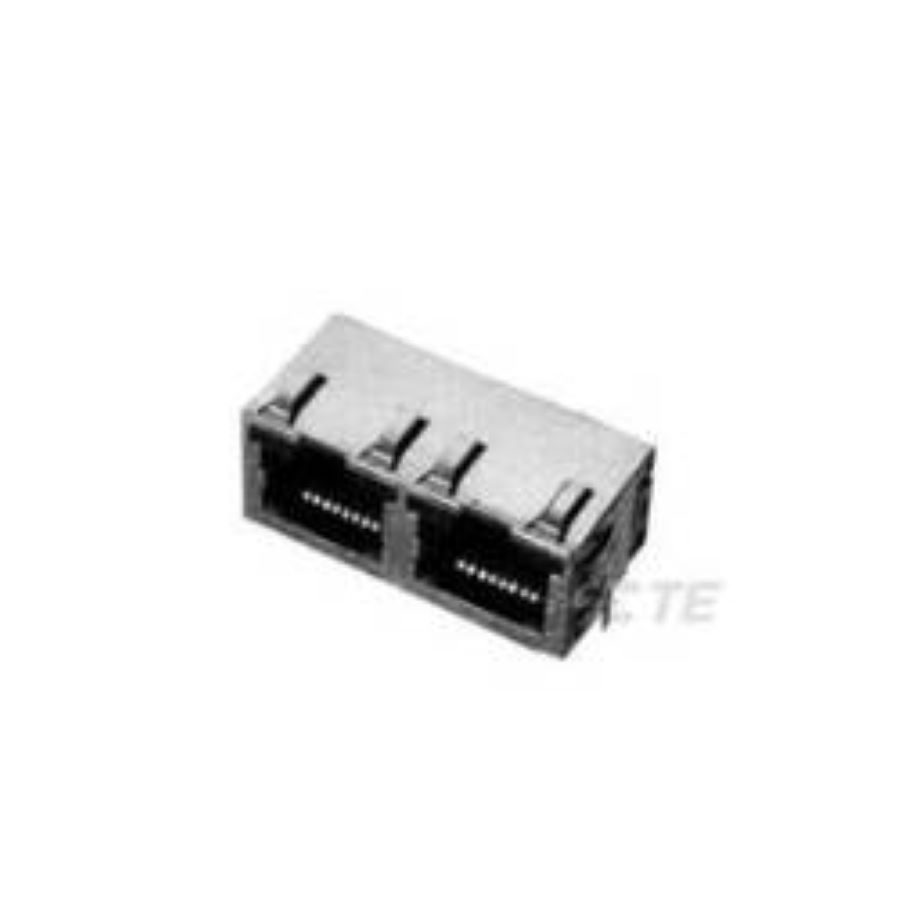

Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A
| Parameter | Value |
|---|---|
| Length | 33.27 mm |
| Width | 33.27 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.35 mm |
| Packaging | Tray |
| Depth | 15.75 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.03 mm |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 16 |
| ELV | Compliant |
| Direction(Counting Sequence) | Up |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Keyed | No |
| Number of Positions Loaded | 16 |
| Tail Length | 2.54 mm |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Contact Finish Thickness - Mating | 1.27 µm |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 1423
Distributors
pcbx
pcbxUnit Price$4.49950
Ext.Price$4.49950
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.49950 | $4.49950 |
| 10 | $3.96174 | $39.61740 |
| 25 | $3.71125 | $92.78125 |
| 50 | $3.48507 | $174.25350 |
| 100 | $3.27267 | $327.26700 |
| 300 | $3.15514 | $946.54200 |
| 500 | $3.04184 | $1520.92000 |
